  • product name: Top push SMD3.4*1.7*1.6mm
  • Product Number: 1TS034A
  • Material: LCP/SUS301/SUS304/AG
  • Scope of application: Mobile phone switch,earphone switch ,intelligent wear equipment switch,Digital 3C Products switch,5g communication products switch,Mifi,CPE switch,Game console switch,Smart speaker switch,Driving recorder switch,car central control switch,Smart watch switch,


Ultra-small tact switch, widely used in products that require volume, supports IP67 waterproof rating, high-quality materials, and provides more stable performance.

Reference alternative:

  1. Panasonic:EVPAT1L1B000,EVPAT2L1B000,EVPATAL1B000
  2. Citizen:LS185 Serie







Item Tact switch detail Tact switch detail2 Tact switch detail3
Article number 1TS034A 1TS034A 1TS034A
Model 1TS034A 1TS034A 1TS034A
Series 1TS034 1TS034 1TS034
(LxW) (mm) 3.4mm×1.7mm 3.4mm×1.7mm 3.4mm×1.7mm
(H) (mm) 1.6±0.1mm 1.6±0.1mm 1.6±0.1mm
Installation height (mm) 1.6±0.1mm 1.6±0.1mm 1.6±0.1mm
Operation Side-press type Side-press type Side-press type
Welding type SMD SMD SMD
Live-fire type Surface mount Surface mount Surface mount
Maximum rating DC 12V/50mA DC 12V/50mA DC 12V/50mA
Contact resistance (<mΩ) 500mΩ max. 500mΩ max. 500mΩ max.
Insulation resistance (MΩ at 100V DC) DC100V 60S  100MΩ min. DC100V 60S  100MΩ min. DC100V 60S  100MΩ min.
Withstanding voltage AC250V(50~60HZ) 60S min. AC250V(50~60HZ) 60S min. AC250V(50~60HZ) 60S min.
Response time 10ms 以下 (ON, OFF) 10ms 以下 (ON, OFF) 10ms 以下 (ON, OFF)
Operating force 120gf 160gf 240gf
Stroke Short strok Short strok Short strok
Stroke (mm) 0.12±0.05mm 0.12±0.05mm 0.12±0.05mm
Operating life 200000 or more 200000 or more 200000 or more
Operating temperature IP67 IP67 IP67
Storage temperature –40℃～+90℃ –40℃～+90℃ –40℃～+90℃
Package style –40℃～+90℃ –40℃～+90℃ –40℃～+90℃
Mini pakage 10000PCS/reel 10000PCS/reel 10000PCS/reel

CTNS/QTY 12reel/ctn 12reel/ctn 12reel/ctn

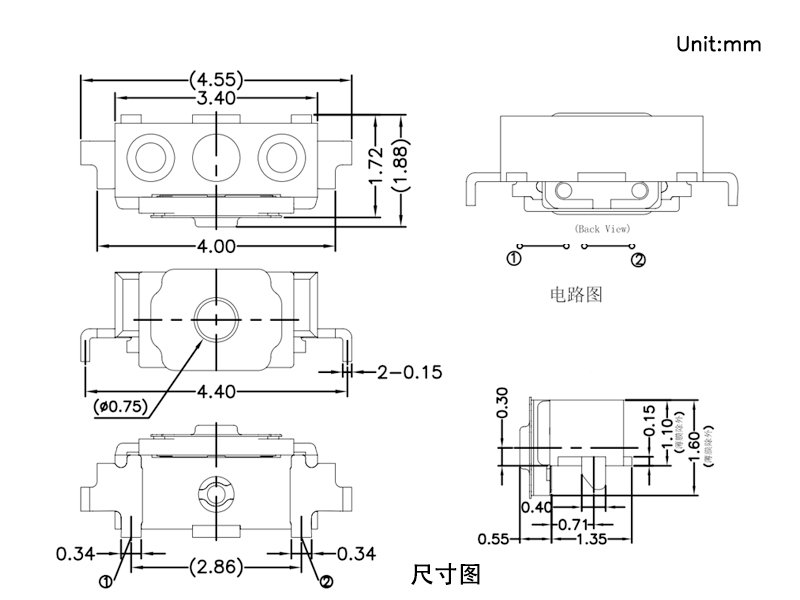

Dimensions:

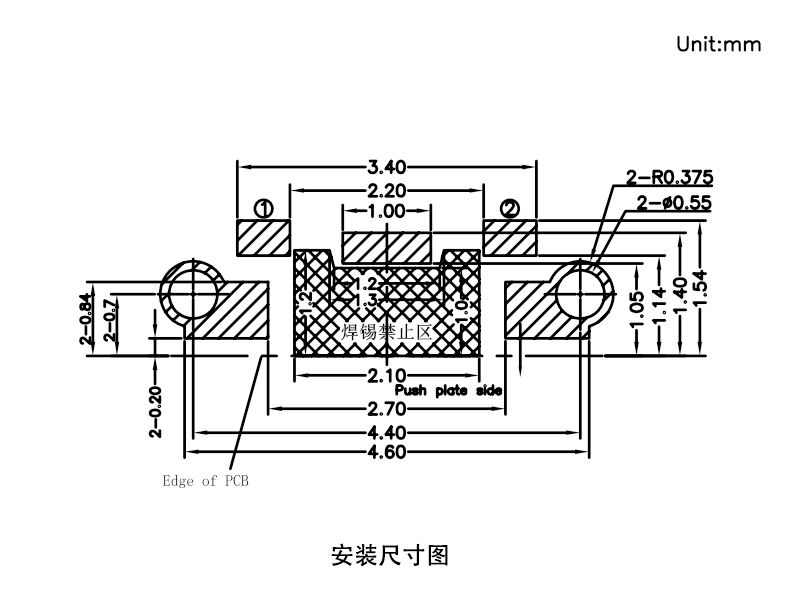

Welding diagram:

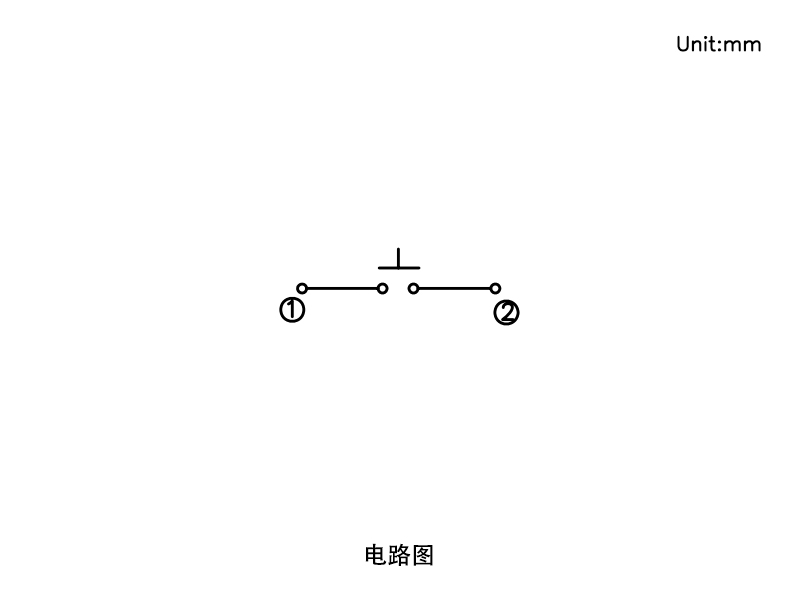

Circuit diagram:

Key words : Top push waterproof switch,1TS034A,EVPAT1L1B000,EVPAT2L1B000,EVPATAL1B000,LS185 Serie
