Your present location:index >> Product classification >> 3060 Tact switch >>1TS002G
  • product name: Side press SMD3*6*3.5/3.8mm
  • Product Number: 1TS002G
  • Material: LCP/BRASS/STAINLESS STEEL
  • Scope of application: Access control equipment buttons, igital caliper buttons, Router reset buttons, High-end toys


3*6*3.5/3.8mm small switch, with both longevity and stability, excellent material, for side pressing type products









Item Tact switch detail Tact switch detail2 Tact switch detail3
Article number 1TS002G 1TS002G 1TS002G
Model 1TS002G 1TS002G 1TS002G
Series 1TS002 1TS002 1TS002
(LxW) (mm) 3*6mm 3*6mm 3*6mm
(H) (mm) 3.5±0.1mm 3.5±0.1mm 3.5±0.1mm
Installation height (mm) 3.5±0.1mm 3.5±0.1mm 3.5±0.1mm
Operation Side-press type Side-press type Side-press type
Welding type SMD SMD SMD
Live-fire type Surface mount Surface mount Surface mount
Maximum rating DC 12V/50mA DC 12V/50mA DC 12V/50mA
Contact resistance (<mΩ) 500mΩ max. 500mΩ max. 500mΩ max.
Insulation resistance (MΩ at 100V DC) DC100V 60S  100MΩmin DC100V 60S  100MΩmin DC100V 60S  100MΩmin
Withstanding voltage AC250V(50~60HZ)60Smin AC250V(50~60HZ)60Smin AC250V(50~60HZ)60Smin
Response time <10ms  (ON, OFF) <10ms  (ON, OFF) <10ms (ON, OFF)
Operating force 130gf 180gf 250gf
Stroke Short stroke Short stroke Short stroke
Stroke (mm) 0.25±0.1mm 0.25±0.1mm 0.25±0.1mm
Operating life 50000 or more 50000 or more 30000 or more
Operating temperature –40℃～+90℃ –40℃～+90℃ –40℃～+90℃
Storage temperature –40℃～+90℃ –40℃～+90℃ –40℃～+90℃
Package style Reel packaging Reel packaging Reel packaging
Mini pakage 2000PCS/reel 2000PCS/reel 2000PCS/reel

CTNS/QTY 10reel/ctn 10reel/ctn 10reel/ctn

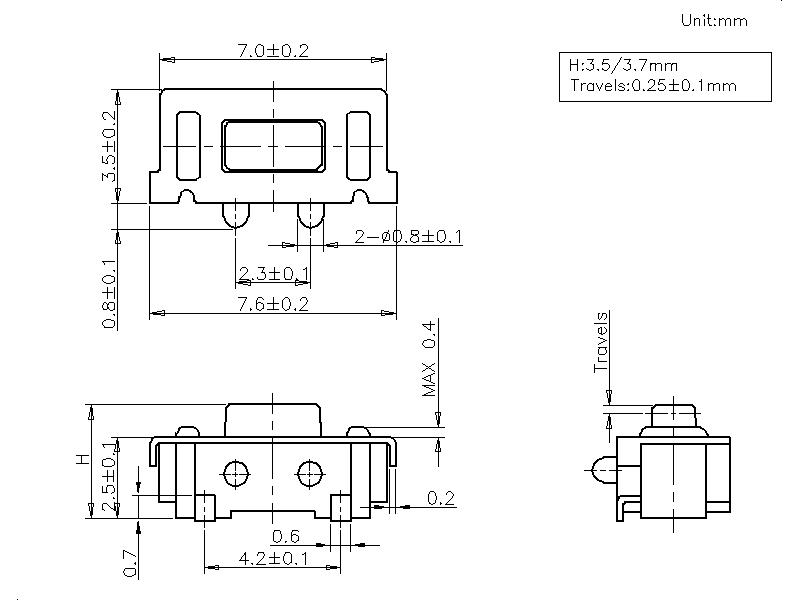

Dimensions:

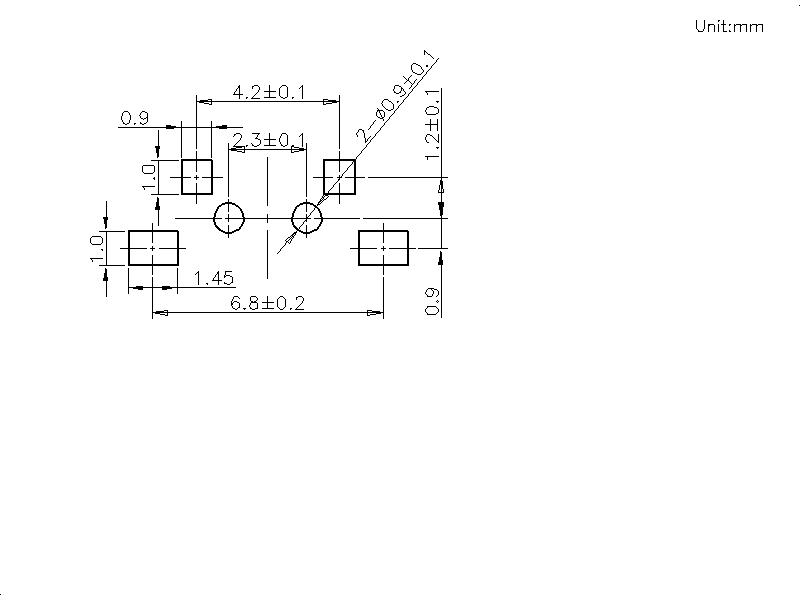

Welding diagram:



Circuit diagram:

Key words : Side switch,1TS002G,1TS002-2500-3500-CT,1TS002G-1800-3500-CT,1TS002G-1300-3500-CT
