Hello! Welcome to Shenzhen Honyuan precision equipment Co., Ltd. official website！

Your present location:index >> Product classification >> Classic Tact switch series >>1TS001G
  • product name: Top push SMD5.2*5.2mm
  • Product Number: 1TS001G
  • Material: PPA/BRONZE/STAINLESS STEEL
  • Scope of application: Smart Speakers, Headphones, Toys


Low-cost solutions: Electrical equipment, industrial control, network equipment, household electrical appliances, toys

Reference alternative:

  1. 1TS001G







Item Tact switch detail Tact switch detail 2
Article number 1TS001G 1TS001G
Model 1TS001G 1TS001G
Series 1TS00 1TS001
(LxW) (mm) 5.2*5.2mm 5.2*5.2mm
(H) (mm) 1.5/1.6/1.7±0.1mm 1.5/1.6/1.7±0.1mm
Installation height (mm) 1.5/1.6/1.7±0.1mm 1.5/1.6/1.7±0.1mm
Operation Top-press type Top-press type
Welding type SMD SMD
Live-fire type Surface mount Surface mount
Maximum rating DC 12V/50mA DC 12V/50mA
Contact resistance (<mΩ) 500mΩ max. 500mΩ max.
Insulation resistance (MΩ at 100V DC) DC100V 60S  100MΩ min. DC100V 60S  100MΩ min.
Withstanding voltage AC250V(50~60HZ) 60S min. AC250V(50~60HZ) 60S min.
Response time <10ms (ON, OFF) <10ms  (ON, OFF)
Operating force 160gf 250gf
Stroke Short stroke Short stroke
Stroke (mm) 0.25±0.1mm 0.25±0.1mm
Operating life 100000 or more 100000 or more
Operating temperature –40℃～+90℃ –40℃～+90℃
Storage temperature –40℃～+90℃ –40℃～+90℃
Package style Reel packaging Reel packaging
Mini pakage 4000PCS/reel 4000PCS/reel

CTNS/QTY 12reel/ctn 12reel/ctn

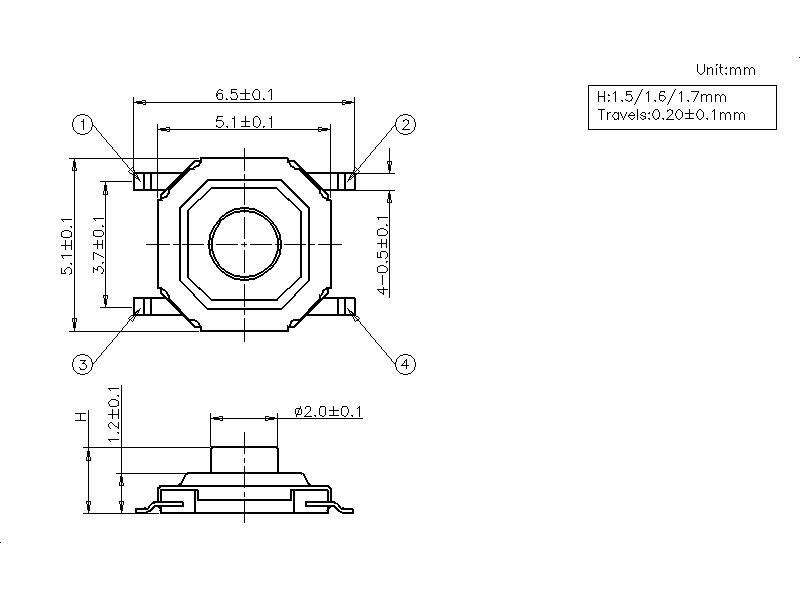

Dimensions:



Welding diagram:



Circuit diagram:

Key words : Top push Switch,1TS001G
